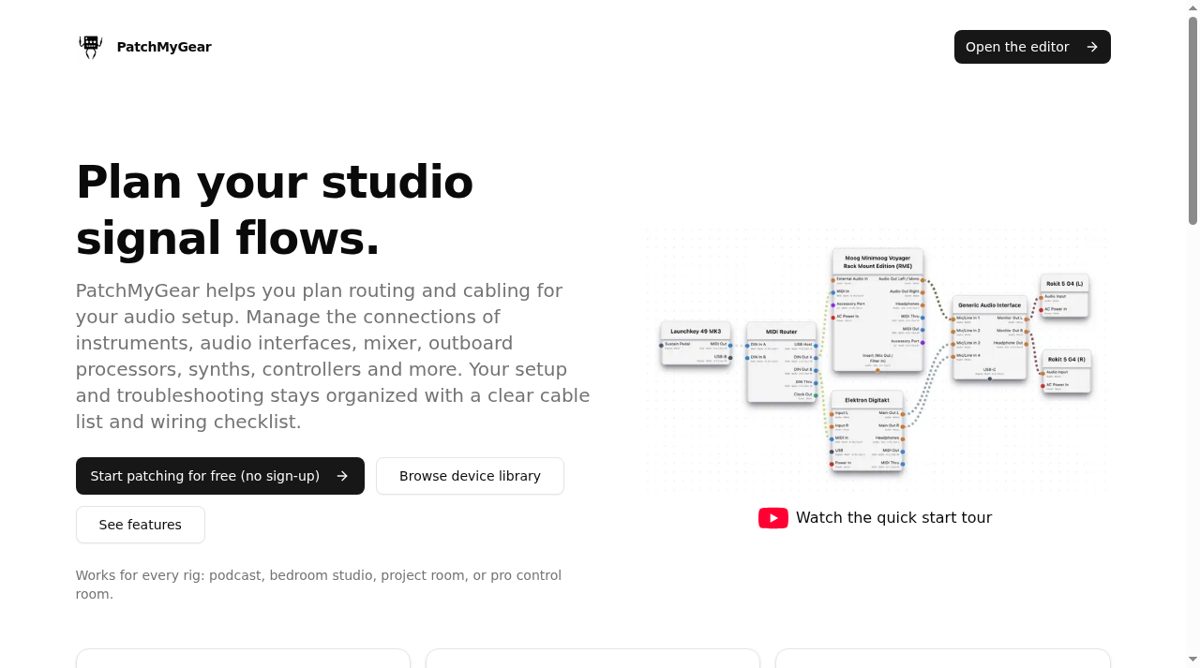

PatchMyGear is a visual planner for audio signal flow and studio wiring. Users lay out their equipment - audio interfaces, mixers, outboard processors, synthesizers and patchbays - and draw the connections between them on an interactive canvas. The result is a clear, shareable map of the studio that doubles as living documentation.
That map pays off when reconfiguring a room or diagnosing a problem: instead of tracing cables by hand, an engineer can see the whole chain at a glance and check planned changes before touching hardware. A device library covers common pro-audio gear, so diagrams stay accurate to real units, and setups can be saved and revisited as the studio evolves.
